Model Number | TP-040503GB-01 |
Printhead | SG1024 |
Number of Printheads | 3 |
Print Speed |
70 pieces/hour (black , 1200*1200DPI, 11"*11" print size)
54 pieces/hour (black, 1200*1200DPI, 34.6*40.8 print size)
|
Ink Type | Pigment ink |
Color |
K C M Y W |
Work Environment |
Temperature: 15℃-28℃;Relative Humidity: 40%-60% |
Rolling System |
Automatic |
Print Interface |
USB3.O/ Network Interface |
RIP Software |
CADlink |
Power Supply | AC220V ± 10%.50/60 ± 1Hz |
Power (Watt) | 2500W |
Language Of Operating System | Chinese & English |

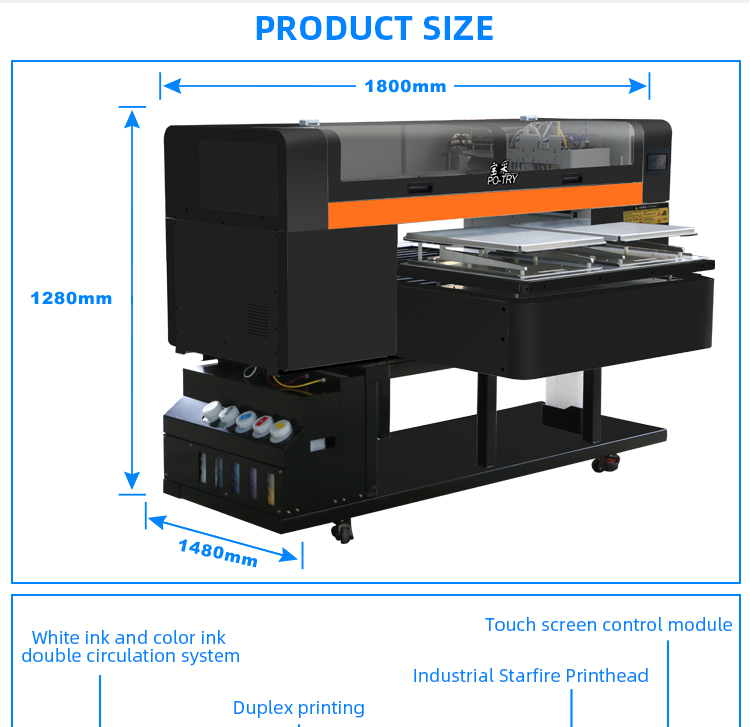

Printer Size | L1800mm*W1480mm*H1280mm |
Net Weight |
202kg |
![]() |
01 Double Station 38X50 Printing Space
Can be replaced by 65X80 printing space, super large printing space, and multi-purpose.
|
![]() |
02 CADlink RIP Software
CADlink RIP software enhances color vividness and is easy to use.
|
![]() |
03 Gimatix SG2014
Industrial printhead, with ink circulation system inside the print head, easy to clean, no ink clogging, long life.
|
![]() |
04 Touch Screen Control System
Screen, the computer can control the printer, easy to use.
|
![]() |
05 THK Double Rail
Japan THK double rail design, is more stable and durable
|
![]() |
06 Print Head Wipers, Aluminum Alloy Cap Station
Not easy to scrape the print heads, long motor life, and improve efficiency
|
![]() |
07 Platen Lifting System
Fabric printing of various thicknesses can be realized by lifting the platen, multi-purpose
|
![]() |
08 Infrared Induction Protection System
By sensing the material height and printhead distance to protect the printhead from being scratched in time.
|
PO-TRY | Others |
![]() |
![]() |
Industrial SG1024 printheadIndustrial SG1024 printhead, detachable, maintenance, single-color cleaning, ink circulation inside printhead, the life span of up to 5 years, 6mm inkjet spacing. Greatly reduce the cost of use.
|
Ordinary printheadThe ordinary printhead is not repairable, and the service life is only 2 years. This printhead is easy to be ink blocked, and the inkjet spacing of 3mm is easy to be scratched. Not suitable for DTG printers.
|
![]() |
![]() |
High Printing Speed and ColorfulThe average printing speed is 60 pieces/hour, and the color performance is the highest on the market
|
Low Printing Speed and Less ColorThe average printing speed is 30 pieces/hour, and the color of the ordinary printhead is ordinary.
|
![]() |
![]() |
Double StationThe printing space of 38X50 and 65X80 can be replaced, which can be flexibly applied to various products
|
Single StationSmall print size, only for a single product
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
